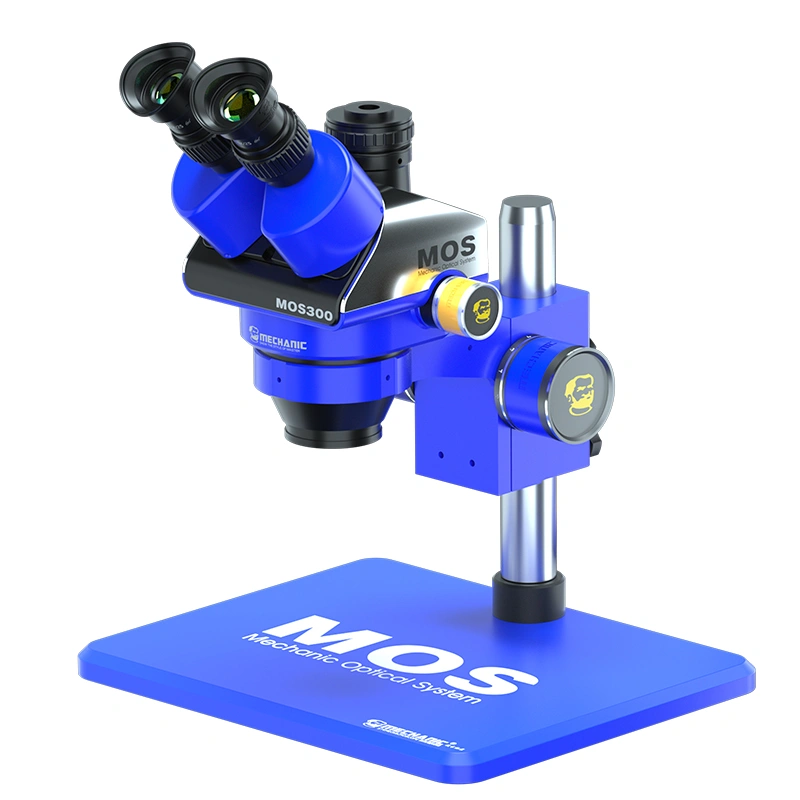

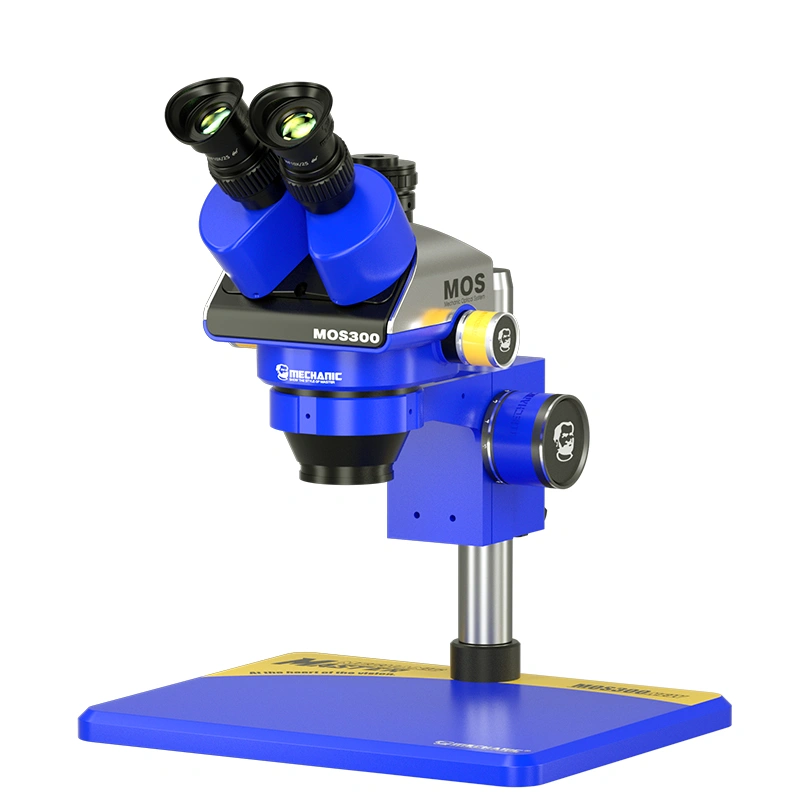

MECHANIC Industrial trinocular stereo microscope MOS300-B11

sku:MOS300-B11

Observation head: 45decline, 360rotate, pupil distance 54---76mm; bilateral visual adjustment ±5

Adjustable eyepiece: Standard: WF10X22, high angle wide-angle eyepiece provides convenience for observers wearing glasses

Optional eyepiece: WF10x22mm, WF15x15mm, WF20x10mm, WF25x9mm, WF30x8mm

Objective: 0.6X---4.5X Zoom Range,objective magnification ratio 1:10,

Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For option

Magnification:  Standard:6X--45X, optional and auxiliary lenses can be extended to 1.8X---90X ontinuous doubling

Working Distance: 100mm

Focus arm: 76mm Diameter, 32mm pole size

Plate: Black/White plate

Base: B11 column type large plate base, another base can be selected

Outward Size: 200mm(W)*273mm(D)*280mm(H)

illumination: Optional LED Illumination, see LED light source series diagram for details
