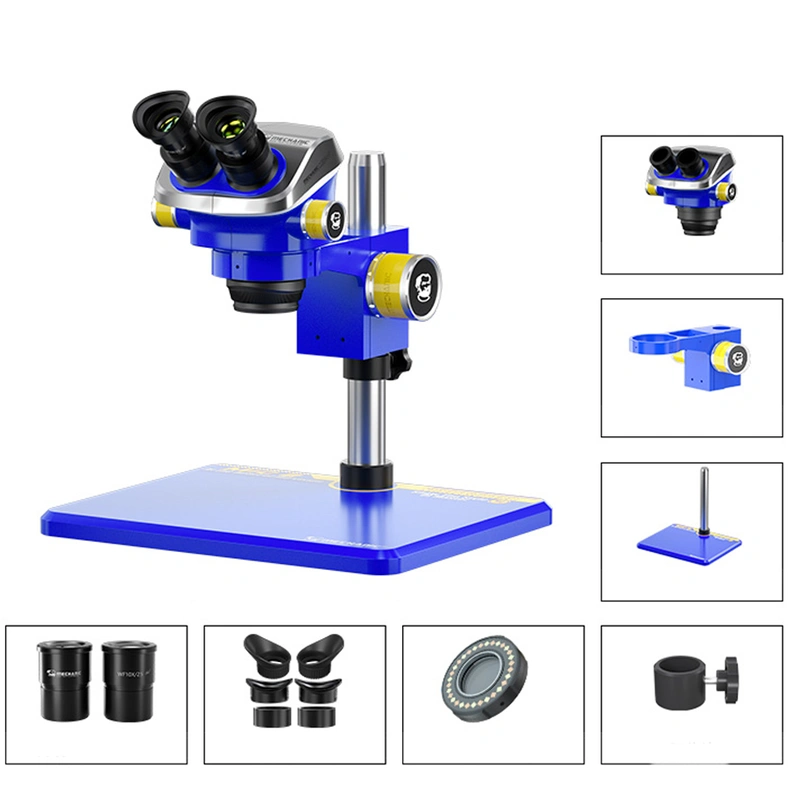

Zoom ratio: 1:7.1
Optional eyepiece: WF10 X22MM / WF15 X15MM / WF20 X10MM
Not adjustable eyepiece: Standard equipment: WF10X25; high-eyepoint wide-angle eyepiece for the convenience of spectacled observers
Observation head: 45° inclination, 360° rotation, interpupillary distance 54~76mm bilateral vision adjustment±5 diopters
Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus
Auxiliary objective: 0.5X, 0.7X, 1.5X, 2X are available as options
Magnification: 7X-50X, optional eyepiece, and auxiliary objective can be expanded to 3.5X-270X, continuous zoom
Working distance: 100mm
Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32mm
Work platform: 320*260mm
